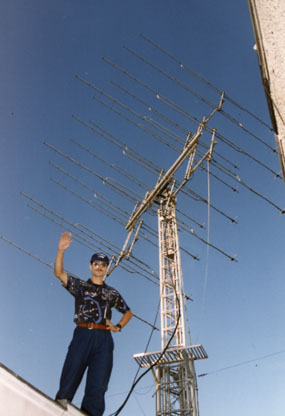

432 MHz: Dirk ON5OF Vanoffel

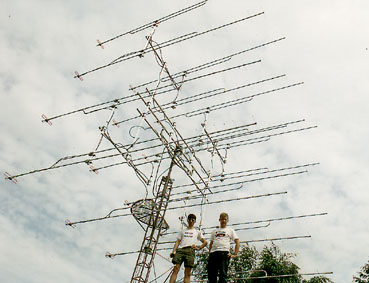

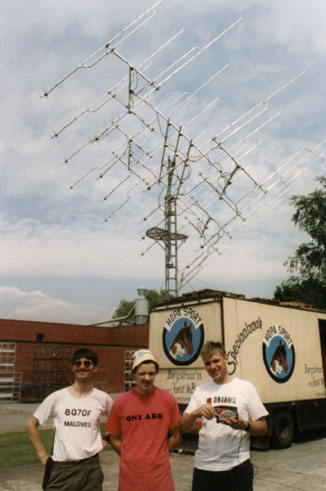

ON5OF/P : ON5OF and Pedro , ON4AWQ. On the right side: ON5OF, ON1ABH and ON4AWQ.







16 x 23 el. Flexa Yagi (DL6WU)

15.8 dB/ant. Spacing is 1.7m. hor. and 1.6m. vert.

Phasing lines: Aircom coax

Azimuth rotor: RC5B. Elevation rotor: KLM EL3000.

Tx line is 25m. 7/8" celflex (-1dB)

PA: GS35B + Gi7 dualtube cavity: 1200 watts output

Preamp.: SSB Electronics NF= 0.5bdB + 2nd preamp SSB / DJ9BV

RX: 432=>28 Mhz converter, Japan Radio JST-245, Timewave 59+ DSP, HAMVIEUW 2.1

TX: Icom IC820H tono 9000 used as keyer
